MATERIAL OF CONSTRUCTION
1. CRANKSHAFT : SPHEROIDAL GRAPHITE IRON
Spheroidal Graphite Iron: Crankshaft is made of nitrated, hardened and tempered Spheroidal Graphite Iron casting.2. MAIN BODY (CRANK CASE) : GREY CAST IRON
Main body in grey iron casting FG-260. With Honned surface finish bore.3. PISTON (CROSS HEAD) : ALLOY STEEL
Alloy steel construction for hard surface coating and super finish.4. CONNECTING ROD : ALLOY STEEL
Forged steel connecting rods with antifriction bearings. Heavy pin area construction, for added load strength.5. BEARING :
Oversized for maximum life and load distribution. Self alignment roller bearing enables it to handles 26% more load than other pumps.6. PUMP HEAD : STAINLESS STEEL
Liquid end is made of high corrosion resistant forged SS 304.7. COMPLETE VALVE : STAINLESS STEEL
Valves made stainless steel for hardened & anti corrosion hard surface coated for long life. High volumetric efficiency valves operate at 96% efficiency plus.8. PLUNGER : CERAMIC / TUNGSTEN COATED
Primarily composed of ceramic coated or Tungsten coated. Surface roughness is extremely good. i.e <0.2 Ra.9. PLUNGER SEAL : PTFE ARAMIDE
“V” Style strong and tightens under load or aramide fiber yarn packing for high compressive & tensile strength ensure effective sealing.
TECHNICAL DETAILS
=> Plunger Stroke : 40 mm
=> Plunger Force : 12.5 KN
=> Max. Plunger Speed : 1.26 m/sec @ 950 spm
=> Inlet Pressure Min. / max : 2 to 3 bar
=> Oil Type : 15 W 40
=> Oil Capacity : 4.5 Ltr
=> Max. Liquid Temp. : 70 DEG. C (160 DEG. F)
=> Suction Connection : 3/4” BSPF
=> Discharge Connection : 1/2" BSPF
=> Medium : Clean Water
=> Available Direct Couple 1000 RPM for 50 Hz (Not 60 Hz) or 1450RPM For Pulley - belts drives or Gear Box
PLUNGER PUMP-AMBICA MACHINE TOOLS
| Model No. | Plunger diameter(MM) |
Folw (LPM) |
Max. Rated Pressure(KG/CM2) |
Strokes Per Minut |
Motor (HP) |
Inlet | Outlet |
|---|---|---|---|---|---|---|---|
| AMTLP - 130/10 | 12 | 10 | 1300 | 750 | 40 | 3/4" | 1/2" |
| AMTLP - 130/08 | 12 | 8 | 1300 | 620 | 30 | 3/4" | 1/2" |
| AMTLP - 130/07 | 12 | 7 | 1300 | 550 | 25 | 3/4" | 1/2" |
| AMTLP - 130/5 | 12 | 5 | 1300 | 415 | 20 | 3/4" | 1/2" |
| AMTLP - 100/14 | 14 | 14 | 1000 | 750 | 40 | 3/4" | 1/2" |
| AMTLP - 100/10 | 14 | 10 | 1000 | 550 | 30 | 3/4" | 1/2" |
| AMTLP - 100/8 | 14 | 8 | 1000 | 450 | 25 | 3/4" | 1/2" |
| AMTLP - 100/7 | 14 | 7 | 1000 | 350 | 20 | 3/4" | 1/2" |
| AMTLP - 75/18 | 16 | 18 | 750 | 750 | 40 | 3/4" | 1/2" |
| AMTLP - 75/13 | 16 | 13 | 750 | 550 | 30 | 3/4" | 1/2" |
| AMTLP - 75/10 | 16 | 10 | 750 | 450 | 25 | 3/4" | 1/2" |
| AMTLP - 75/08 | 16 | 8 | 750 | 350 | 20 | 3/4" | 1/2" |
AMTLP SERIES PRODUCT RANGE FOR HYDROBLASTING & HYDROTEST
| Model No. | Plunger diameter(MM) |
Folw (LPM) |
Max. Rated Pressure(KG/CM2) |
Strokes Per Minut |
Motor (HP) |
Inlet | Outlet |
|---|---|---|---|---|---|---|---|
| AMTLP - 50/30 | 18 | 30 | 500 | 1000 | 40 | 1” | 3/4” |
| AMTLP - 48/29 | 18 | 29 | 480 | 970 | 40 | 1” | 3/4” |
| AMTLP - 48/21 | 18 | 21 | 480 | 710 | 30 | 1” | 3/4” |
| AMTLP - 47/18 | 18 | 18 | 470 | 615 | 25 | 1” | 3/4” |
| AMTLP - 47/15 | 18 | 15 | 470 | 500 | 20 | 1” | 3/4” |
| AMTLP - 40/37 | 20 | 37 | 400 | 1000 | 40 | 1” | 3/4” |
| AMTLP - 38/36 | 20 | 36 | 380 | 970 | 40 | 1” | 3/4” |
| AMTLP - 39/26 | 20 | 26 | 390 | 710 | 30 | 1” | 3/4” |
| AMTLP - 38/23 | 20 | 23 | 380 | 615 | 25 | 1” | 3/4” |
| AMTLP - 38/19 | 20 | 19 | 380 | 500 | 20 | 1” | 3/4” |
| AMTLP - 32/45 | 22 | 45 | 320 | 1000 | 40 | 1” | 3/4” |
| AMTLP - 32/44 | 22 | 44 | 320 | 970 | 40 | 1” | 3/4” |
| AMTLP - 32/32 | 22 | 32 | 320 | 710 | 30 | 1” | 3/4” |
| AMTLP - 31/28 | 22 | 28 | 310 | 615 | 25 | 1” | 3/4” |
| AMTLP - 31/23 | 22 | 23 | 310 | 500 | 20 | 1” | 3/4” |
| AMTLP - 25/59 | 25 | 59 | 250 | 1000 | 40 | 1” | 3/4” |
| AMTLP - 24/57 | 25 | 57 | 240 | 970 | 40 | 1” | 3/4” |
| AMTLP - 25/42 | 25 | 42 | 250 | 710 | 30 | 1” | 3/4” |
| AMTLP - 24/36 | 25 | 36 | 240 | 615 | 25 | 1” | 3/4” |
| AMTLP - 24/30 | 25 | 30 | 240 | 500 | 20 | 1” | 3/4” |
10. SPECIAL NOTES & APPLICATION
Note:
(1) Maximum Permisible fluid temperature is 70 Deg. C.
(2) Power calculations shown in the table is based on maximum rated pressure however for low pressure requirement, power will also be propertionally reduced. Pump speed lower then specified in above chart is also available for special application.
(3) Volumetric efficiency is considered @ 100% where not specified.
11. SUITABLE APPLICATIONS OF AMTLP SERIES TRIPLEX PUMP
-> Hydroblasting
-> Tube Cleaning
-> Paint Removal
-> Hydro Test
-> Surface Preparation & Many More.....

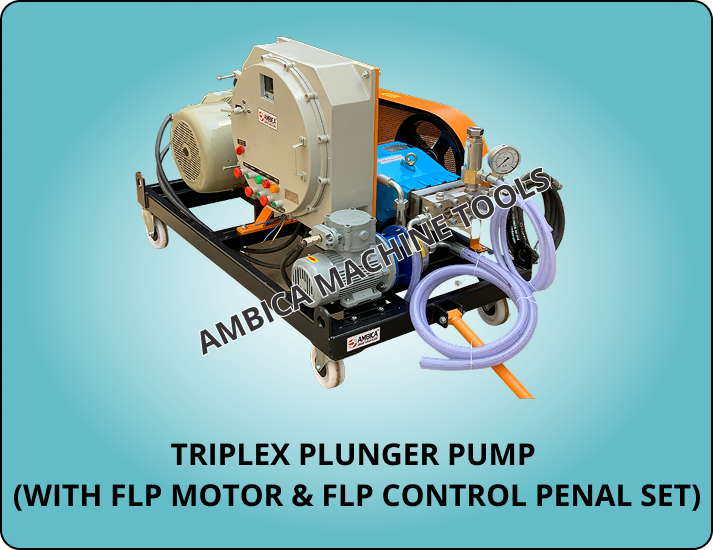

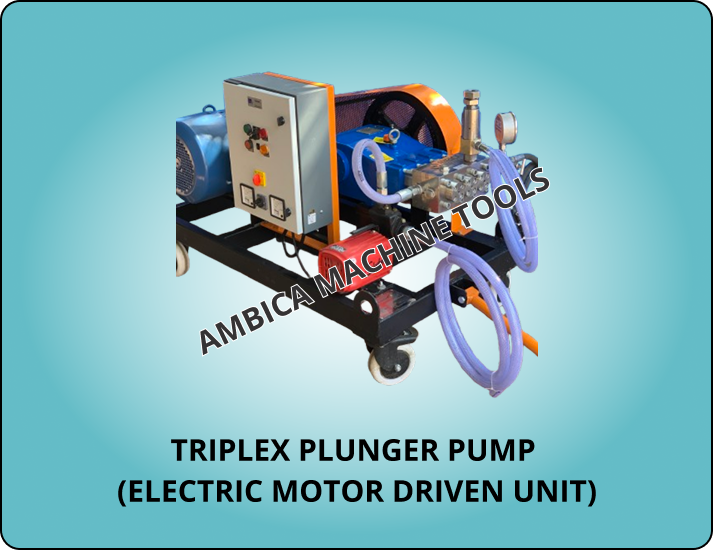

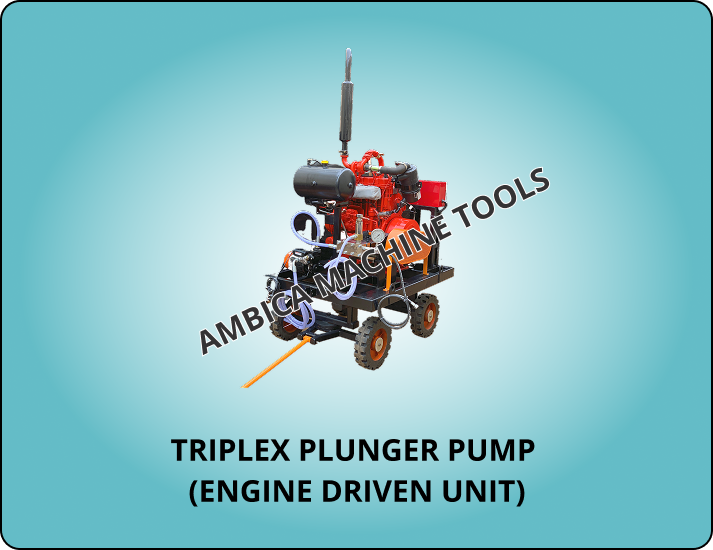

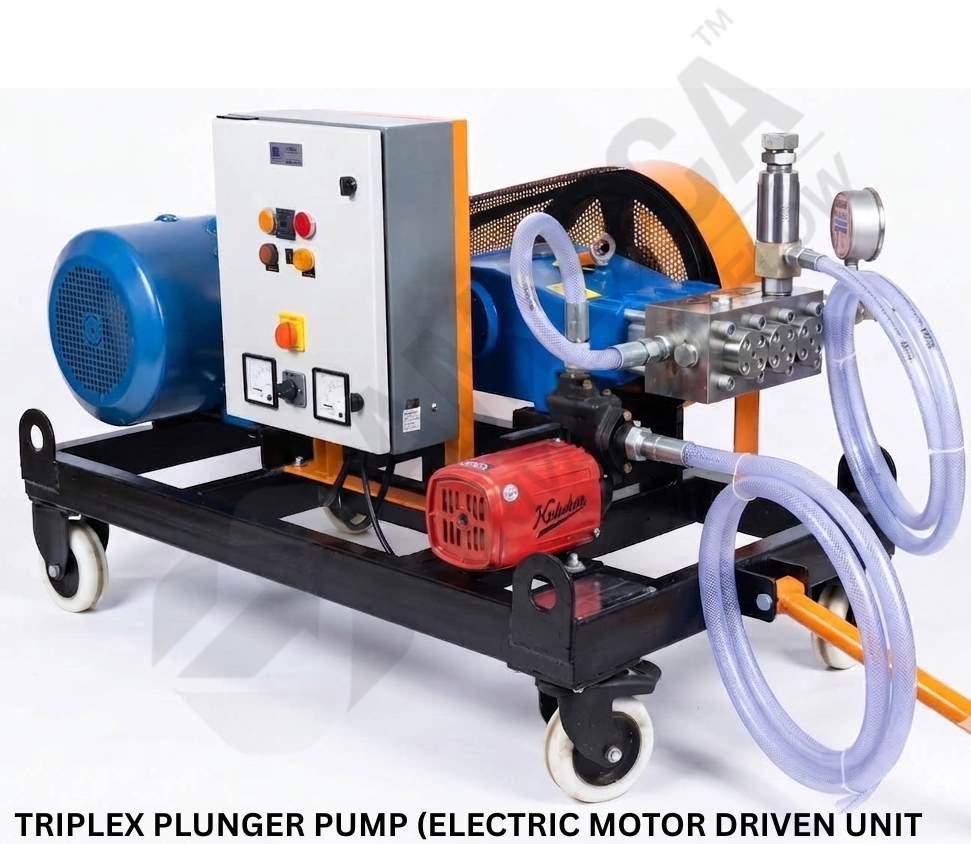

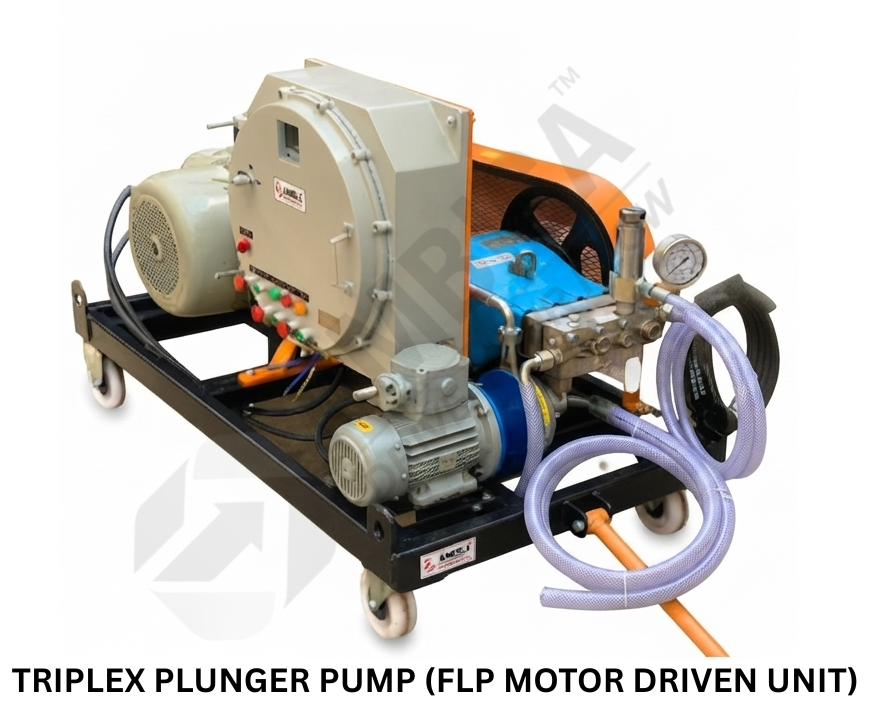

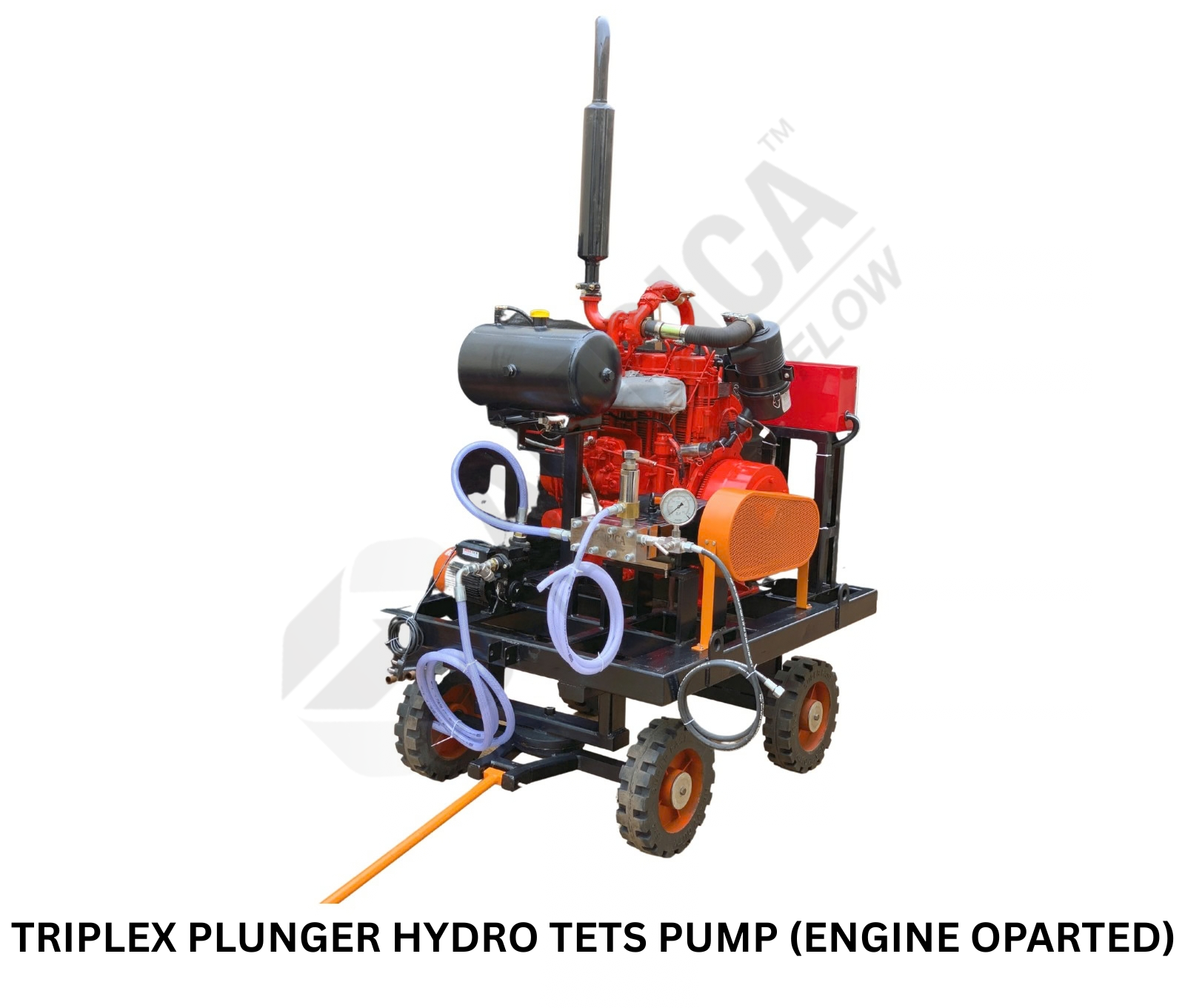

12. Triplex Plunger Pump AMTLP
The Triplex Plunger Pump AMTLP manufacturer and supplier in India offers a high-performance, precision-engineered solution designed for various industrial applications. Crafted for durability and efficiency, the AMTLP series ensures unmatched reliability, making it the preferred choice for professionals across industries.
Key Features
1. Superior Performance
The Triplex Plunger Pump AMTLP delivers exceptional flow rates and pressure levels, ensuring smooth and efficient operations even in the most challenging environments.
2. Precision Engineering
Manufactured with state-of-the-art technology, this Triplex Plunger Pump AMTLP manufacturer and supplier in India ensures robust construction and precision-machined components, guaranteeing long-lasting durability and optimal performance.
3. Versatile Applications
From industrial cleaning to hydrostatic testing, the AMTLP pump adapts to diverse industries, ensuring consistent and reliable results.
4. Energy-Efficient Design
Engineered to reduce energy consumption while maintaining peak performance, the AMTLP pump helps minimize operational costs for businesses.
5. User-Friendly Operation
Designed for ease of installation, operation, and maintenance, the Triplex Plunger Pump AMTLP is compact, ergonomic, and hassle-free, making it a practical choice for industrial use.
Why Choose AMTLP?
- High Capacity: Available in capacities ranging from 240 to 1300 liters per hour to meet various operational needs.
- Precision Flow Rates: Delivers 20 to 40 liters per minute, ensuring optimal output for different applications.
- Durable Build: Designed to withstand extreme conditions, ensuring longevity and minimal downtime.
- Global Standard: Trusted by professionals worldwide for its efficiency and reliability.
Whether you're handling demanding industrial tasks or need a pump that guarantees consistent performance, the Triplex Plunger Pump AMTLP manufacturer and supplier in India is your trusted partner for high-quality pumping solutions.
Contact Information
Ambica Machine Tools
📞 +91 9328289287 / 9601253837
📧 info@ambicamachinetools.com / sales@ambicamachinetools.com
📍 Plot No. 24/25-1, Zaveri Ind. Estate, Opp. Shubh Estate Gate, Kathwada-Singarva Road, Kathwada, Ahmedabad - 382430, Gujarat, India
