2" BSP (50mm)
M.O.C. - PP, PVDF, SS-316, ALU.
| Max Flow Rate |
586LPM |
|---|---|
| Port Size |
Inlet : 50.80mm (2" BSP) Discharge : 50.80mm (2" BSP) Air Inlet : 1/2" BSP Air Exhaust : 19.05mm (3/4" BSP) |
| Suction Lift |
Dry : 4.75m (15') Wet : 7.62m (25') |
| Teflon |
Dry : 3.05m (10') Wet : 6.09m (20') |
| Max Particle Size (Dia) |
6.35mm (0.250") |
Pump GA Drawing
Download GA Drawing
Pump GAD 2"POLYPROPYLENE
Download GA Drawing
Pump GAD 2"PVDF
Download GA Drawing
Pump GAD 2"SS-316
Download GA Drawing
Pump GAD 2"ALU.
Performance Graph

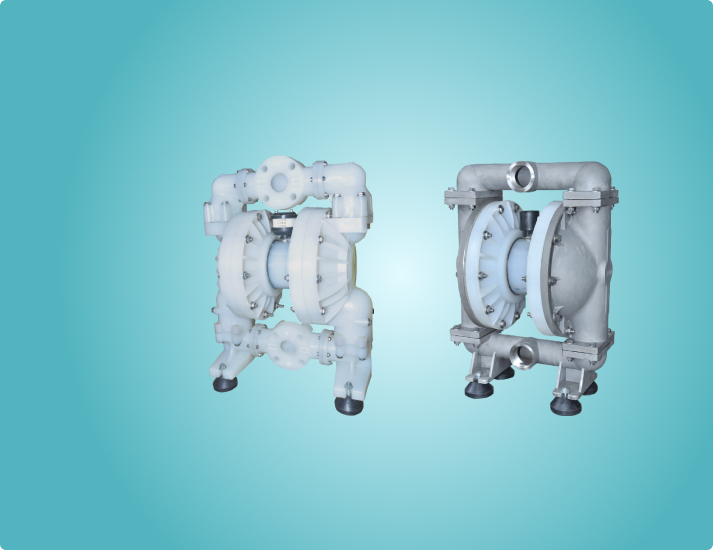

AODD Pump Size - 2" INCH
