1. Applications
- Boilers, Pressure Vessels, C.I Mains, Casting Parts
- Gas Cylinders, Pipes & Tubes Parts
- Subject to Hydro Test Pressure
2. Special Features

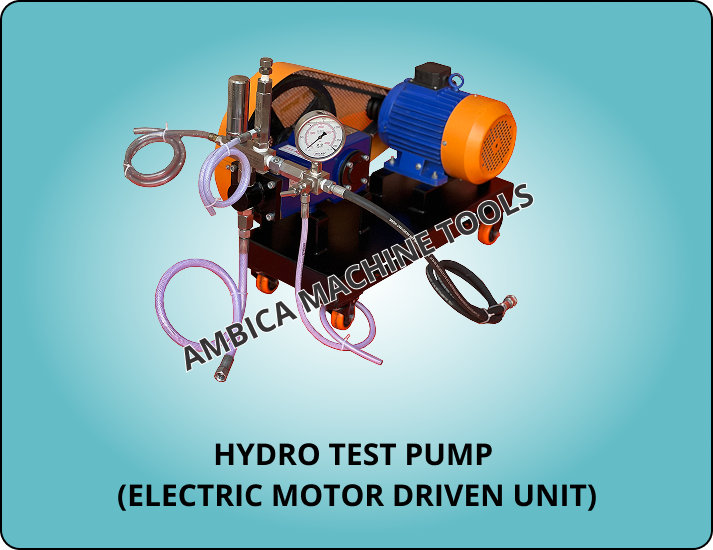

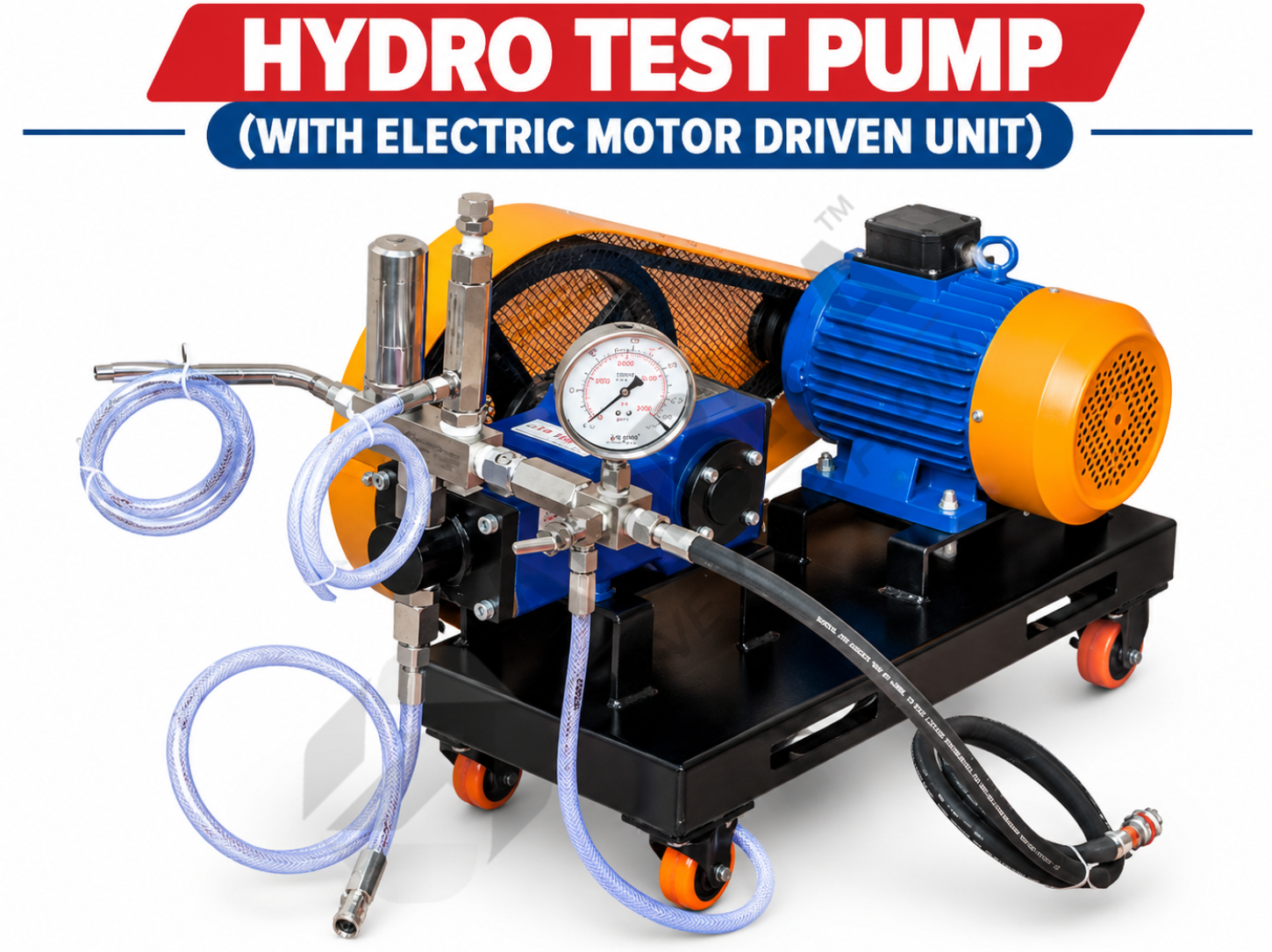

- Electric motorized / engine-driven system.
- Totally enclosed drive mechanism.
- Heavy-duty precision gearbox
- Large air chamber
- Self-oiling system with quick-acting relief
- Totally dependable, reliable, efficient, and high-performance
3. Standard Accessories & Material of Construction (M.O.C.)
- Pressure Release Valve Made From Stainless Steel 304 Material (Needle Type Valve)
- Discharge High-Pressure Hose with Attachment of 1/2" inch BSP Connection Length 2 Mtrs
- Stainless Steel 304, Glycerin-Filled Pressure Gauge With 4" Inch Dial (NABL Calibrated)
- Discharge Valve (NRV) Made From Stainless Steel 304 Material
- Suction and Overflow Nylon braided hose pipe supple attachment of 1/2" BSP 2 Mtrs
- Suction & Discharge Valve Made From Stainless Steel 304 Material
- Air Chambermade From Stainless Steel 304 Material
- Discharge valve (NRV) made from Stainless Steel 304 Material
- Pressure set valve made from stainless stee 304 material.
- Distributor Body Made From Stainless Steel 304
- Pump Stand made from Mild Steel 3" x 1" "C" Channel
- Pump mounted on suitable trolley with Rubber Brake Caster Wheel
- Trolley Mounted Pump: Rubber Brake Caster Wheel
- Pulley guard made from Mild Steel Material.
- Pump and motor pulley made from Mild Steel Material.
4. Optional Accessories

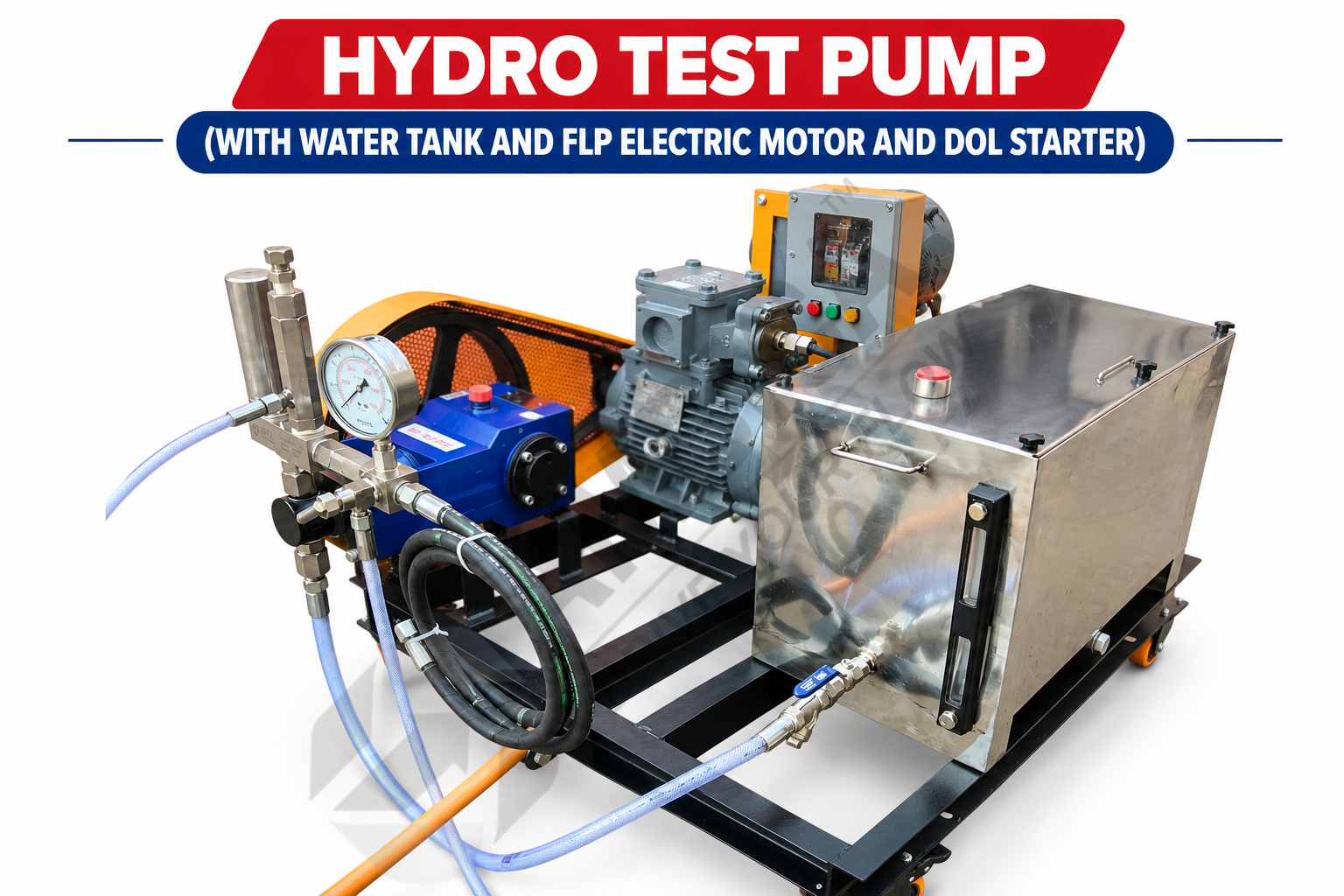

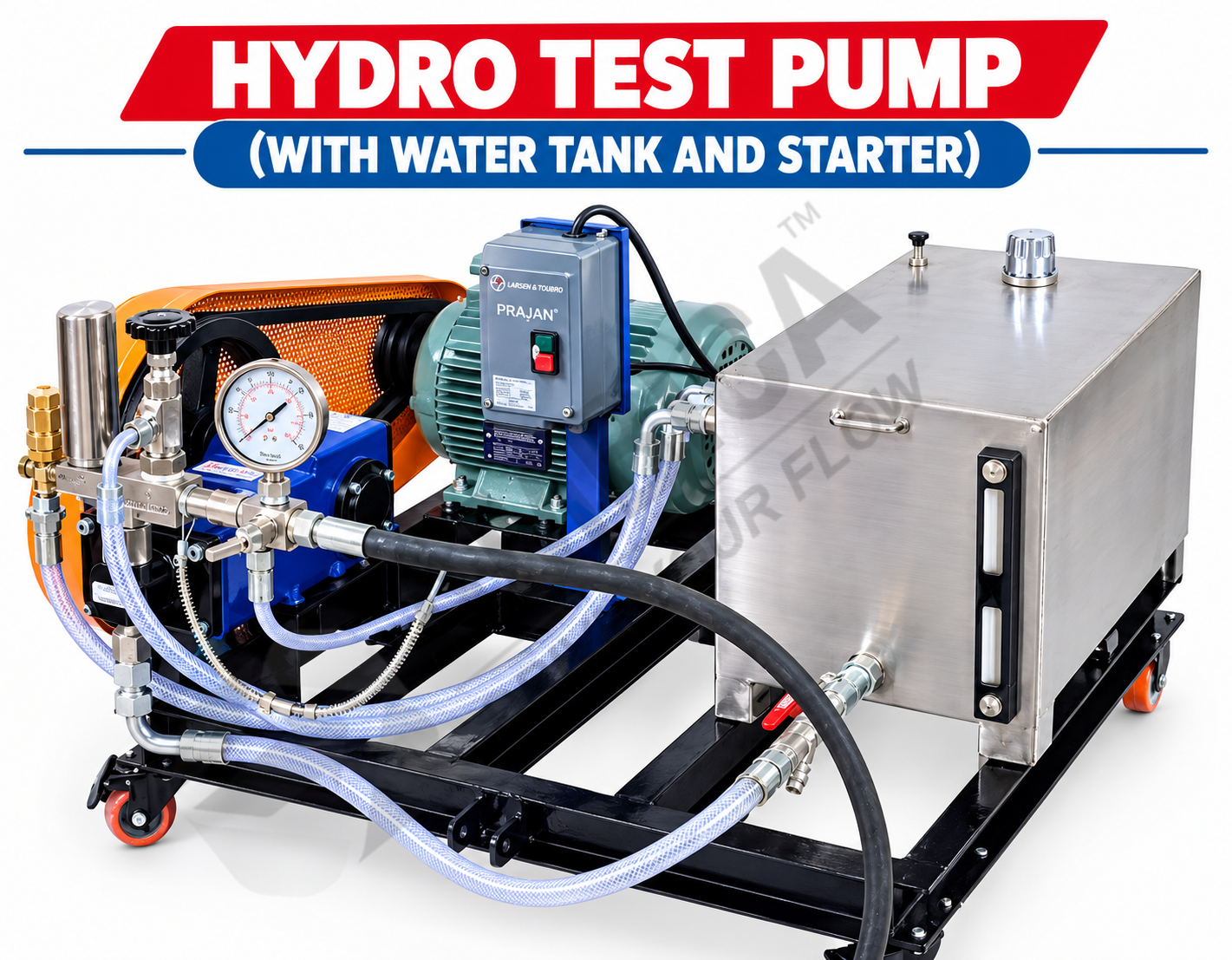

- Water Tank capacity of 50 Liters & made from Stainless Steel 304 Material with Level Indicator & Suction Strainer - SS 304
- D.O.L. Push Button Pump Starter make L&T or C&S
5. Performance Range
- Test Pressure: Up to 1200 kg/cm
- Water Flow Capacity: Up to 120 LPH
- Motor Power: Up to 10 HP
| Model No. | Pressure (kg/cm²) | Capacity (LPH) | Motor HP / RPM / KW |
|---|---|---|---|
| AMTMH - 70 | 70 | 120 | 1/1440/0.75 |
| AMTMH - 140 | 140 | 120 | 2/1440/1.5 |
| AMTMH - 211 | 211 | 120 | 3/1440/2.2 |
| AMTMH - 350 | 350 | 120 | 5/1440/3.5 |
| AMTMH - 500 | 500 | 120 | 5/1440/3.5 |
| AMTMH - 700 | 705 | 120 | 5/1440/3.5 |
| AMTMH - 1000 | 1000 | 120 | 7.5/1440/5.5 |
| AMTMH - 1200 | 1250 | 120 | 7.5/1440/5.5 |
6. Why Choose Ambica Machine Tools?
- Premium Quality: Our pumps are manufactured using high-grade materials ensuring durability and high performance.
- Customization: We offer custom solutions based on your testing requirements.
- Efficient Performance: Our hydro testing pumps are designed for maximum efficiency and reliability.
- Trusted by Industry Leaders: We serve numerous industries with high-performance hydro testing solutions.
- Innovative Technology: Our pumps incorporate the latest advancements in hydro testing technology.
- After-Sales Support: We provide comprehensive after-sales service and maintenance.
7. Industries We Serve
- Oil & Gas Industry
- Chemical Processing Plants
- Power Generation Plants
- Aerospace & Defense
- Manufacturing & Heavy Engineering
- Municipal Water & Sewage Systems

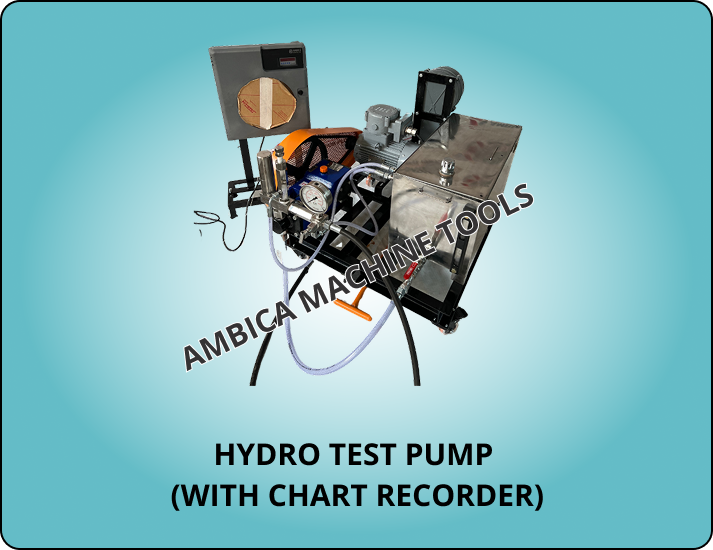

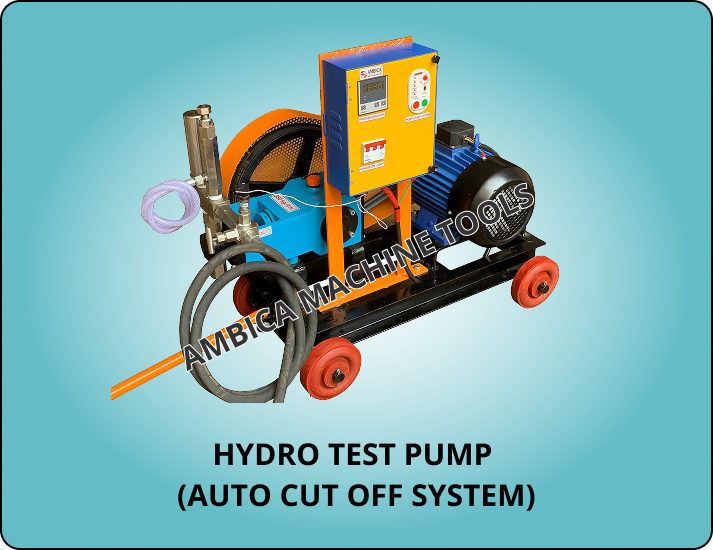

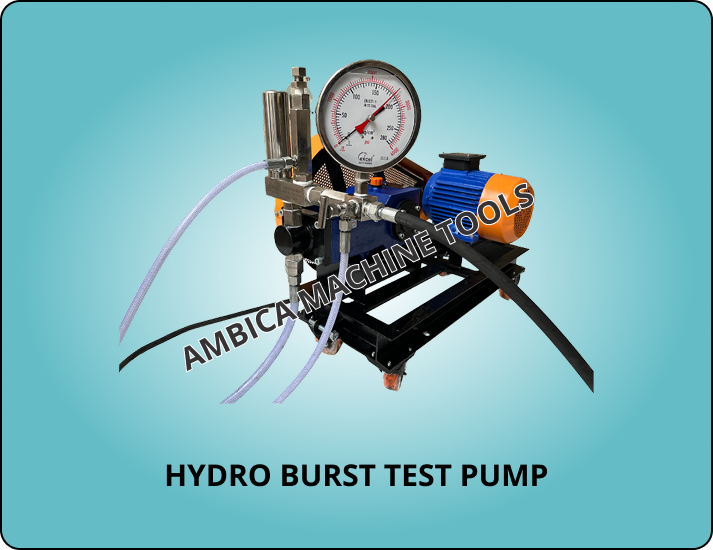

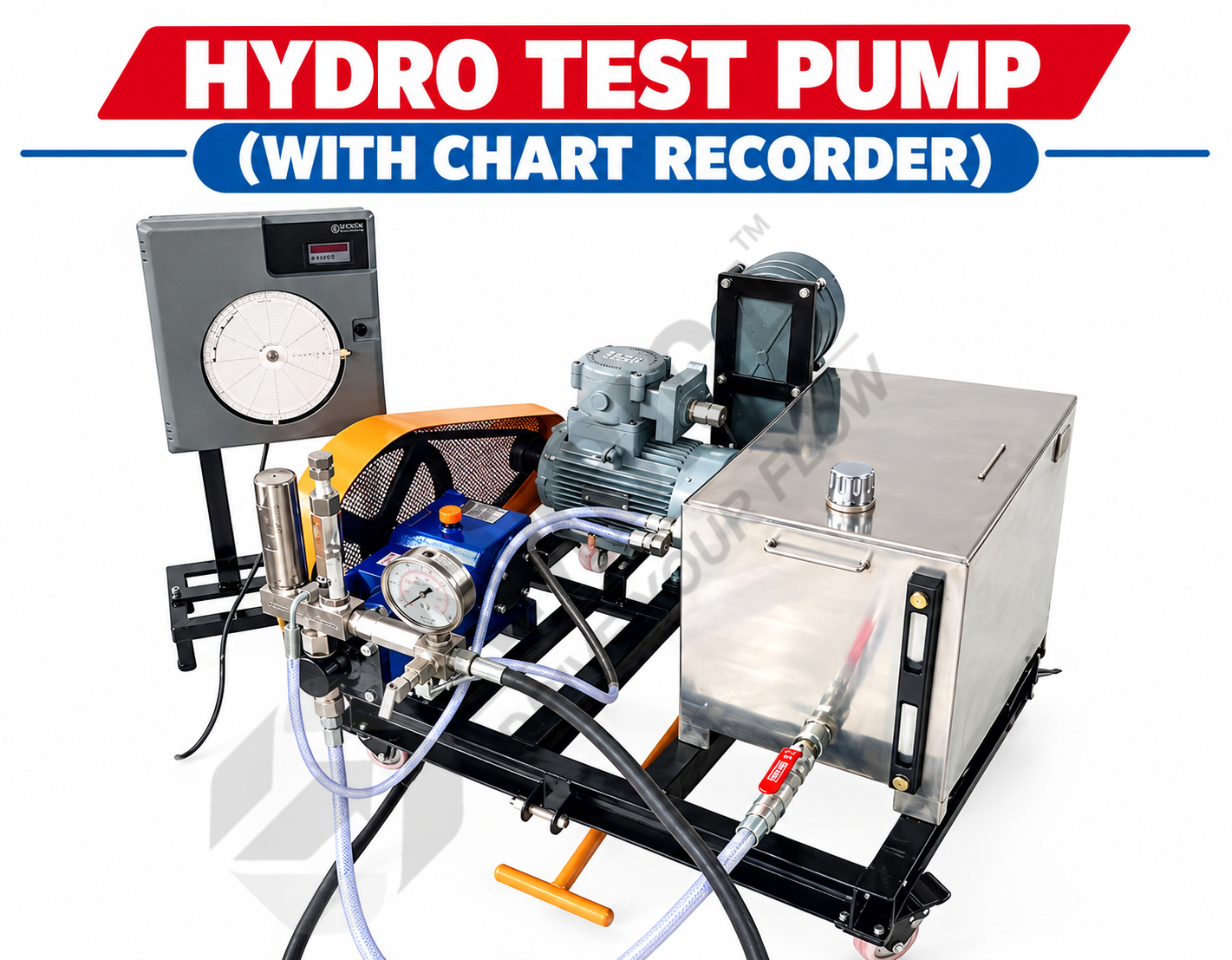

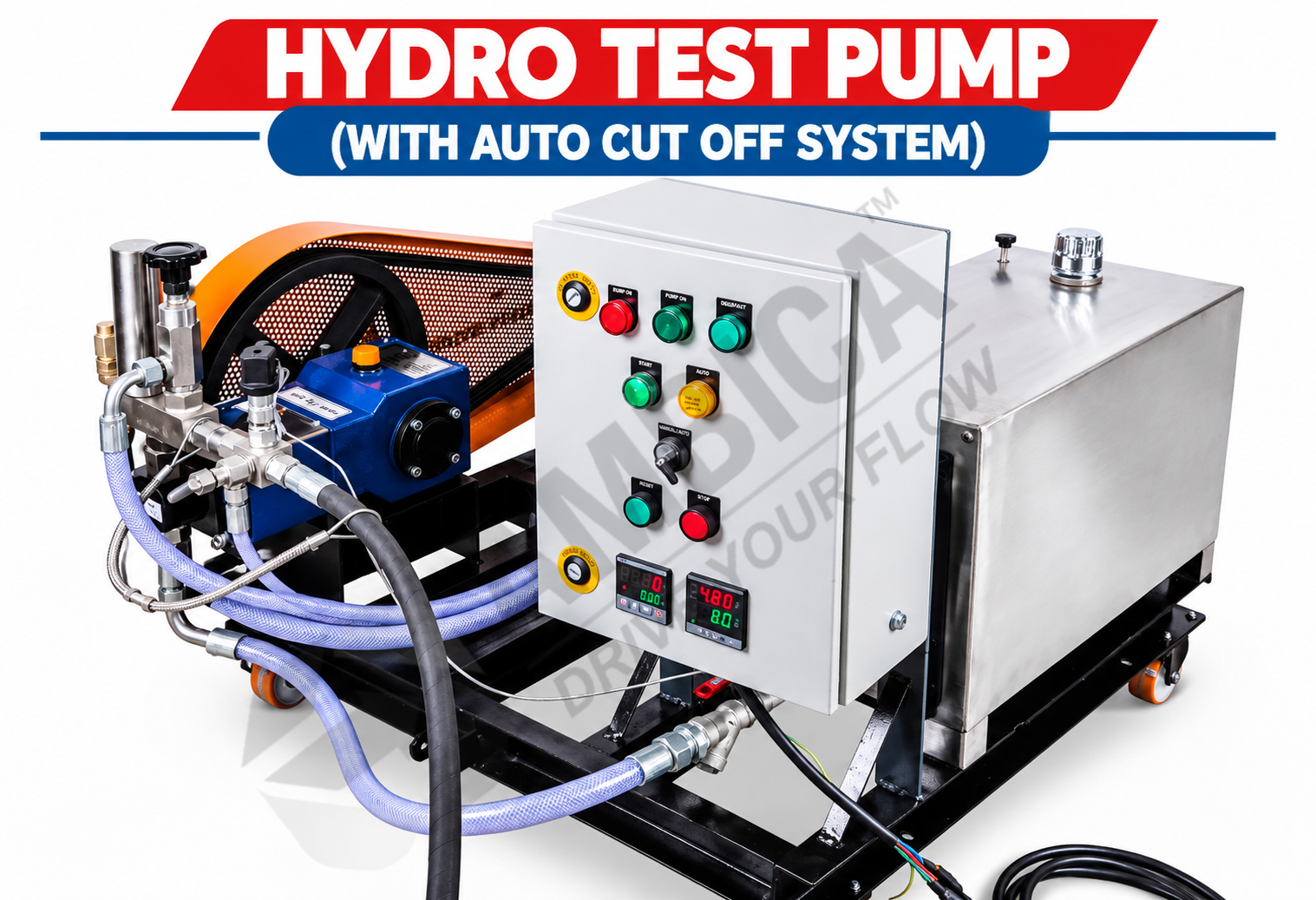

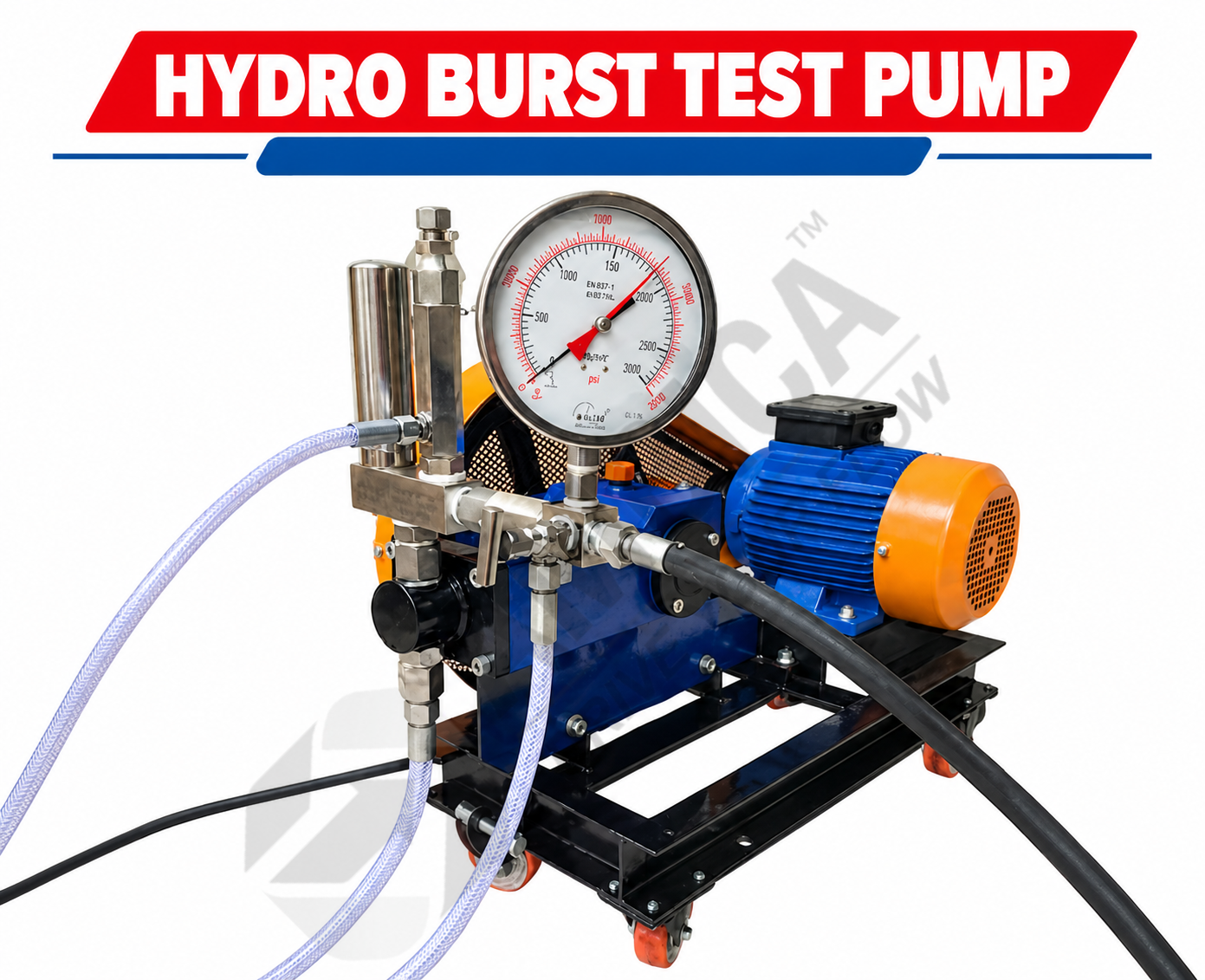

MOTOR HYDRO TESTING PUMP (AMTMH)
The Motor Hydro Testing Pump (AMTMH) manufacturer and supplier in India provides a reliable solution for high-pressure hydro testing applications. Designed for precision and durability, this electric motor-operated pump is essential for testing the structural integrity of components such as pipes, boilers, pressure vessels, and tanks. Its robust design ensures accurate pressure testing across various industrial sectors, including oil & gas, petrochemicals, power plants, and heavy engineering.
Key Features and Benefits
This Motor Hydro Testing Pump (AMTMH) manufacturer and supplier in India delivers consistent performance with minimal maintenance. It includes a heavy-duty motor, high-pressure pump assembly, stainless steel pressure gauge, and suction & delivery hose pipes, ensuring safe and efficient testing. The pump is mounted on a durable base frame with an integrated electrical control panel for smooth operation.
Special Features:
- High Efficiency & Durability: Built with precision-engineered components for xlong-lasting performance.
- Low Maintenance: Designed for continuous and intermittent duty with minimal servicing requirements.
- Corrosion-Resistant Construction: Ensures longevity in harsh industrial environments.
- Compact & Space-Efficient: Optimized design for easy installation and operation.
The AMTMH series from Ambica Machine Tool is available in different models to meet various pressure and flow rate requirements. For example, the AMTMH100 model delivers a flow rate of 100 LPM at 150 bar, powered by a 10 HP motor, while higher-capacity models like AMTMH200 and AMTMH300 offer increased pressure ratings and power output. These pumps support pressure ratings up to 5075 PSI with power options ranging from 7.5 kW to 22.5 kW, making them suitable for demanding industrial applications.
